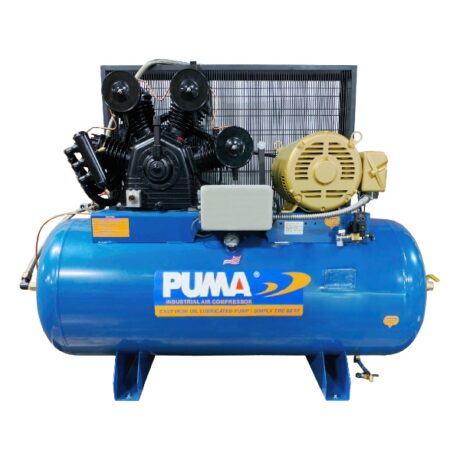

TUK-150120M3*
HP15
Motor RPM / Frame1740 / 254
Voltage / Phase208-230 or 460 / Three / 39-35.4 or 17.7
Pump R.P.M.870
Working PSI175
Max PSI175
TUK-150120M3* — Full Specifications
HP15
Motor RPM / Frame1740 / 254
Voltage / Phase208-230 or 460 / Three / 39-35.4 or 17.7
Pump R.P.M.870
Working PSI175
Max PSI175
FAD CFM @ 90 PSI50
FAD CFM @ 175 PSI48
Tank Capacity (GAL)120
Tank StyleHorizontal
ASME / Cert. CodeASME / CRN
Magnetic StarterYes
Outlet Ball Valve1"
Ext. Manual Drain1/4"

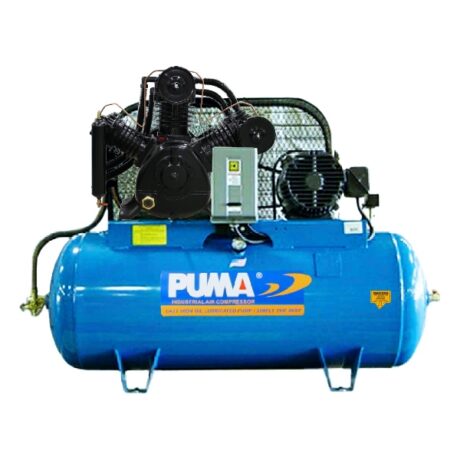

TUK-200120M3*
HP20
Motor RPM / Frame1740 / 256
Voltage / Phase208-230 or 460 / Three / 54 or 27
Pump R.P.M.935
Working PSI175
Max PSI175
TUK-200120M3* — Full Specifications
HP20
Motor RPM / Frame1740 / 256
Voltage / Phase208-230 or 460 / Three / 54 or 27
Pump R.P.M.935
Working PSI175
Max PSI175
FAD CFM @ 90 PSI75
FAD CFM @ 175 PSI64
Tank Capacity (GAL)120
Tank StyleHorizontal
ASME / Cert. CodeASME / CRN
Magnetic StarterYes
Outlet Ball Valve1"
Ext. Manual Drain1/4"

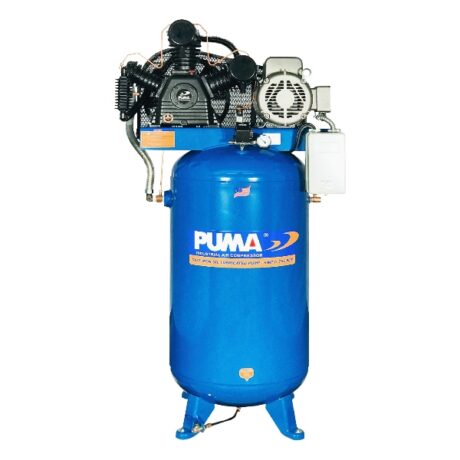

TUK-7580VM3*
HP7.5
Motor RPM / Frame1740 / 215
Voltage / Phase460 / Three / 8.97
Pump R.P.M.890
Working PSI175
Max PSI175
TUK-7580VM3* — Full Specifications
HP7.5
Motor RPM / Frame1740 / 215
Voltage / Phase460 / Three / 8.97
Pump R.P.M.890
Working PSI175
Max PSI175
FAD CFM @ 90 PSI24
FAD CFM @ 175 PSI23
Tank Capacity (GAL)80
Tank StyleVertical
ASME / Cert. CodeASME / CRN
Magnetic StarterYes
Outlet Ball Valve1/2"
Ext. Manual Drain1/4"
TUK-75120VM
HP7.5
Motor RPM / Frame1740 / 215
Voltage / Phase208-230 / Single / 40
Pump R.P.M.890
Working PSI175
Max PSI175
TUK-75120VM — Full Specifications
HP7.5
Motor RPM / Frame1740 / 215
Voltage / Phase208-230 / Single / 40
Pump R.P.M.890
Working PSI175
Max PSI175
FAD CFM @ 90 PSI24
FAD CFM @ 175 PSI23
Tank Capacity (GAL)120
Tank StyleVertical
ASME / Cert. CodeASME / CRN
Magnetic StarterYes
Outlet Ball Valve1"
Ext. Manual Drain1/4"

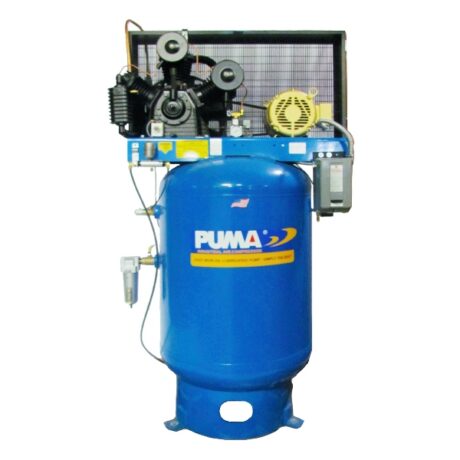

TUK-75120VM3*
HP7.5
Motor RPM / Frame1740 / 215
Voltage / Phase208-230 or 460 / Three / 19.8-17.9 or 8.97
Pump R.P.M.890
Working PSI175
Max PSI175
TUK-75120VM3* — Full Specifications
HP7.5
Motor RPM / Frame1740 / 215
Voltage / Phase208-230 or 460 / Three / 19.8-17.9 or 8.97
Pump R.P.M.890
Working PSI175
Max PSI175
FAD CFM @ 90 PSI24
FAD CFM @ 175 PSI23
Tank Capacity (GAL)120
Tank StyleVertical
ASME / Cert. CodeASME / CRN
Magnetic StarterYes
Outlet Ball Valve1"
Ext. Manual Drain1/4"

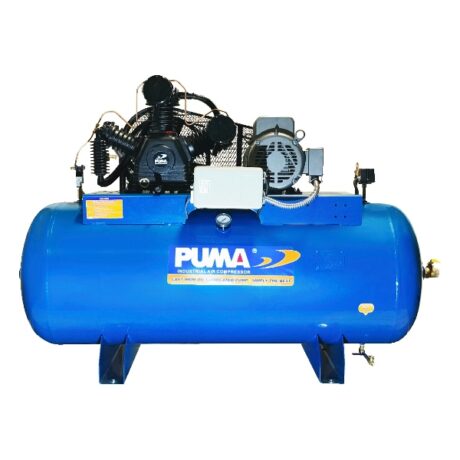

TUK-75120M
HP7.5
Motor RPM / Frame1740 / 215
Voltage / Phase208-230 / Single / 40
Pump R.P.M.890
Working PSI175
Max PSI175
TUK-75120M — Full Specifications
HP7.5
Motor RPM / Frame1740 / 215
Voltage / Phase208-230 / Single / 40
Pump R.P.M.890
Working PSI175
Max PSI175
FAD CFM @ 90 PSI24
FAD CFM @ 175 PSI23
Tank Capacity (GAL)120
Tank StyleHorizontal
ASME / Cert. CodeASME / CRN
Magnetic StarterYes
Outlet Ball Valve1"
Ext. Manual Drain1/4"
TUK-75120M3*
HP7.5
Motor RPM / Frame1740 / 215
Voltage / Phase208-230 / Three / 19.8-17.9
Pump R.P.M.890
Working PSI175
Max PSI175
TUK-75120M3* — Full Specifications
HP7.5
Motor RPM / Frame1740 / 215
Voltage / Phase208-230 / Three / 19.8-17.9
Pump R.P.M.890
Working PSI175
Max PSI175
FAD CFM @ 90 PSI24
FAD CFM @ 175 PSI23
Tank Capacity (GAL)120
Tank StyleHorizontal
ASME / Cert. CodeASME / CRN
Magnetic StarterYes
Outlet Ball Valve1"
Ext. Manual Drain1/4"
TUK-10080VM1
HP10
Motor RPM / Frame1740 / 215
Voltage / Phase208-230 / Single / 44.8-39
Pump R.P.M.800
Working PSI175
Max PSI175
TUK-10080VM1 — Full Specifications
HP10
Motor RPM / Frame1740 / 215
Voltage / Phase208-230 / Single / 44.8-39
Pump R.P.M.800
Working PSI175
Max PSI175
FAD CFM @ 90 PSI33
FAD CFM @ 175 PSI32
Tank Capacity (GAL)80
Tank StyleVertical
ASME / Cert. CodeASME / CRN
Magnetic StarterYes
Outlet Ball Valve1/2"
Ext. Manual Drain1/4"

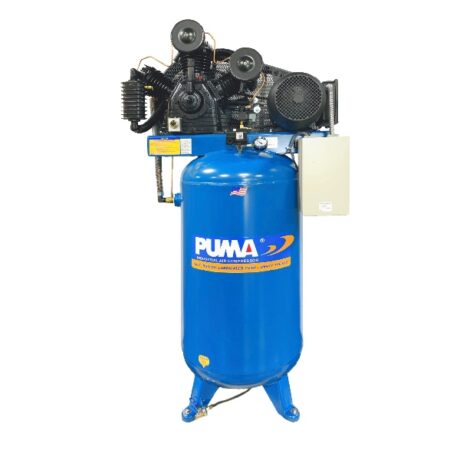

TUK-10080VM3*
HP10
Motor RPM / Frame1740 / 215
Voltage / Phase208-230 or 460 / Three / 27-24.4 or 12.2
Pump R.P.M.870
Working PSI175
Max PSI175
TUK-10080VM3* — Full Specifications
HP10
Motor RPM / Frame1740 / 215
Voltage / Phase208-230 or 460 / Three / 27-24.4 or 12.2
Pump R.P.M.870
Working PSI175
Max PSI175
FAD CFM @ 90 PSI36.3
FAD CFM @ 175 PSI34.2
Tank Capacity (GAL)80
Tank StyleVertical
ASME / Cert. CodeASME / CRN
Magnetic StarterYes
Outlet Ball Valve1/2"
Ext. Manual Drain1/4"
TUE-7580VM
HP7.5
Motor RPM / Frame1740 / 215
Voltage / Phase208-230 / Single / 33.3-31.3
Pump R.P.M.1180
Working PSI175
Max PSI175
TUE-7580VM — Full Specifications
HP7.5
Motor RPM / Frame1740 / 215
Voltage / Phase208-230 / Single / 33.3-31.3
Pump R.P.M.1180
Working PSI175
Max PSI175
FAD CFM @ 90 PSI23
FAD CFM @ 175 PSI22
Tank Capacity (GAL)80
Tank StyleVertical
ASME / Cert. CodeASME / CRN
Magnetic StarterYes
Outlet Ball Valve1/2"
Ext. Manual Drain1/4"

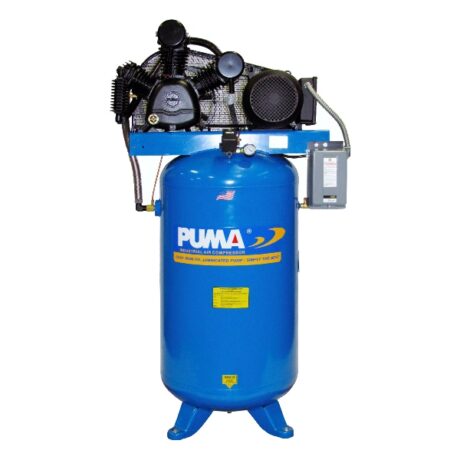

TUE-7580VM3*
HP7.5
Motor RPM / Frame1740 / 215
Voltage / Phase208-230 or 460 / Three / 19.8-17.9 or 8.97
Pump R.P.M.1180
Working PSI175
Max PSI175
TUE-7580VM3* — Full Specifications
HP7.5
Motor RPM / Frame1740 / 215
Voltage / Phase208-230 or 460 / Three / 19.8-17.9 or 8.97
Pump R.P.M.1180
Working PSI175
Max PSI175
FAD CFM @ 90 PSI23
FAD CFM @ 175 PSI22
Tank Capacity (GAL)80
Tank StyleVertical
ASME / Cert. CodeASME / CRN
Magnetic StarterYes
Outlet Ball Valve1/2"
Ext. Manual Drain1/4"

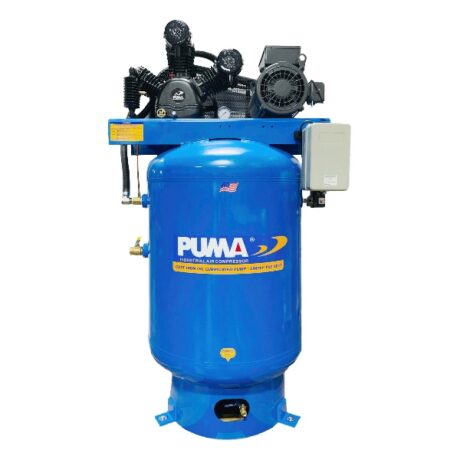

TUE-75120VM
HP7.5
Motor RPM / Frame1740 / 215
Voltage / Phase208-230 / Single / 33.3-31.3
Pump R.P.M.1180
Working PSI175
Max PSI175
TUE-75120VM — Full Specifications
HP7.5
Motor RPM / Frame1740 / 215
Voltage / Phase208-230 / Single / 33.3-31.3
Pump R.P.M.1180
Working PSI175
Max PSI175
FAD CFM @ 90 PSI23
FAD CFM @ 175 PSI22
Tank Capacity (GAL)120
Tank StyleVertical
ASME / Cert. CodeASME / CRN
Magnetic StarterYes
Outlet Ball Valve1"
Ext. Manual Drain1/4"
