PK5020H
HP2
Motor RPM / Frame3450/ODP
Voltage / Phase115, 230*/Single
Full Load Amperage14, 7
Pump R.P.M.1150
Working PSI135
PK5020H — Full Specifications
HP2
Motor RPM / Frame3450/ODP
Voltage / Phase115, 230*/Single
Full Load Amperage14, 7
Pump R.P.M.1150
Working PSI135
CFM @ 40 PSI6.1
CFM @ 90 PSI5
Tank Capacity (GAL)20
Tank StyleHorizontal portable
ASME / Cert. CodeASME
RemarkETL
PK5020V
HP2
Motor RPM / Frame3450/ODP
Voltage / Phase115, 230*/Single
Full Load Amperage14, 7
Pump R.P.M.1150
Working PSI135
PK5020V — Full Specifications
HP2
Motor RPM / Frame3450/ODP
Voltage / Phase115, 230*/Single
Full Load Amperage14, 7
Pump R.P.M.1150
Working PSI135
CFM @ 40 PSI6.1
CFM @ 90 PSI5
Tank Capacity (GAL)20
Tank StyleVertical portable
ASME / Cert. CodeASME
RemarkETL
PK5020
HP2
Motor RPM / Frame3450/ODP
Voltage / Phase115,230*/Single/14,7
Pump R.P.M.1150
Max PSI135
CFM @ 40 PSI6.1
PK5020 — Full Specifications
HP2
Motor RPM / Frame3450/ODP
Voltage / Phase115,230*/Single/14,7
Pump R.P.M.1150
Max PSI135
CFM @ 40 PSI6.1
CFM @ 90 PSI5
Tank Capacity (GAL)20
Tank StyleHorizontal, Portable
ASME / Cert. CodeASME
RemarkCSA
FeaturesSingle phase dual voltage induction motors with overload protection.

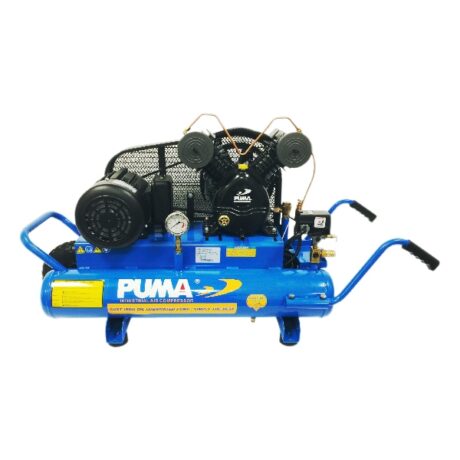

PUK-2008MDC
HP2
Motor RPM / Frame3450/TEFC
Voltage / Phase115,230*/Single/19,9.5
Pump R.P.M.980
Max PSI135
CFM @ 40 PSI8.5
PUK-2008MDC — Full Specifications
HP2
Motor RPM / Frame3450/TEFC
Voltage / Phase115,230*/Single/19,9.5
Pump R.P.M.980
Max PSI135
CFM @ 40 PSI8.5
CFM @ 90 PSI7.4
Tank Capacity (GAL)8
Tank StyleTwin Portable
RemarkDual Control
FeaturesBuilt-in pressure regulator and quick coupler for pressure control of output air, and steel wheels with ball bearing and No-flat tires for best mobility.

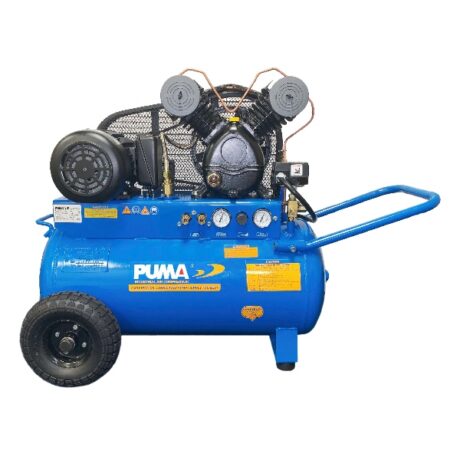

PUK-2020MDC
HP2
Motor RPM / Frame3450/TEFC
Voltage / Phase115,230*/Single/19,9.5
Pump R.P.M.980
Max PSI135
CFM @ 40 PSI8.5
PUK-2020MDC — Full Specifications
HP2
Motor RPM / Frame3450/TEFC
Voltage / Phase115,230*/Single/19,9.5
Pump R.P.M.980
Max PSI135
CFM @ 40 PSI8.5
CFM @ 90 PSI7.4
Tank Capacity (GAL)20
Tank StyleHorizontal, Portable
ASME / Cert. CodeASME
RemarkDual Control
PK5020VP
HP2
Motor RPM / Frame3450/ODP
Voltage / Phase115,230*/Single/14,7
Pump R.P.M.1150
Max PSI135
CFM @ 40 PSI6.1
PK5020VP — Full Specifications
HP2
Motor RPM / Frame3450/ODP
Voltage / Phase115,230*/Single/14,7
Pump R.P.M.1150
Max PSI135
CFM @ 40 PSI6.1
CFM @ 90 PSI5
Tank Capacity (GAL)20
Tank StyleVertical Portable
ASME / Cert. CodeASME
RemarkETL
FeaturesOil lubricated, single stage cast iron pumps. Ideal for home and professional applications.
