TE6580V
HP6.5
Tank StyleVertical
ASME / Cert. CodeASME/CRN
CFM @ 90 PSI17
Voltage / Phase208-230/Single/24.5-23
Motor RPM / Frame3450/182
TE6580V — Full Specifications
HP6.5
Tank StyleVertical
ASME / Cert. CodeASME/CRN
CFM @ 90 PSI17
Voltage / Phase208-230/Single/24.5-23
Motor RPM / Frame3450/182
Pump R.P.M.1268
Working PSI175
FAD CFM @ 175 PSI16

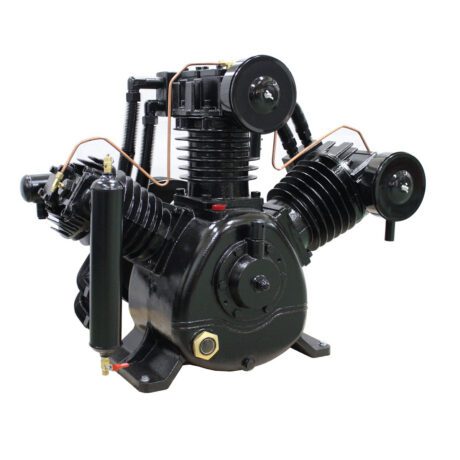

GUT200
HP15 / 20
Displacement CFM55 / 70
FAD CFM @ 90 PSI43 / 55
FAD CFM @ 175 PSI40 / 50
Pump R.P.M.650 / 870
Piston dia (mm)120 / 100
GUT200 — Full Specifications
HP15 / 20
Displacement CFM55 / 70
FAD CFM @ 90 PSI43 / 55
FAD CFM @ 175 PSI40 / 50
Pump R.P.M.650 / 870
Piston dia (mm)120 / 100
Stroke (mm)L 100 / H 100
No. of CylindersL 2 / H 1
Max PSI200
Working PSI175
Max. RPM1000
Min. RPM650
Remarksemi-auto type

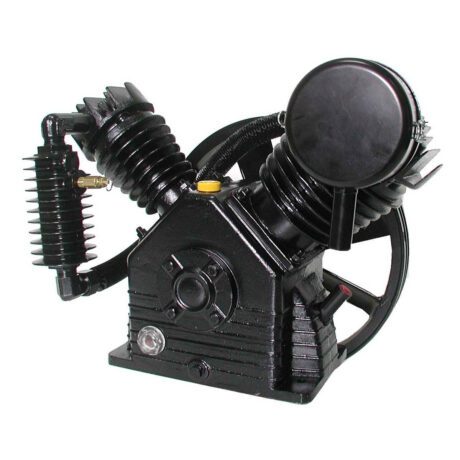

TN50
HP5
Displacement CFM17.2
FAD CFM @ 90 PSI14.6
FAD CFM @ 175 PSI14.5
Pump R.P.M.810
Piston dia (mm)95 / 51
TN50 — Full Specifications
HP5
Displacement CFM17.2
FAD CFM @ 90 PSI14.6
FAD CFM @ 175 PSI14.5
Pump R.P.M.810
Piston dia (mm)95 / 51
Stroke (mm)L 85 / H 85
No. of CylindersL 1 / H 1
Max PSI200
Working PSI175
Max. RPM1100
Min. RPM700

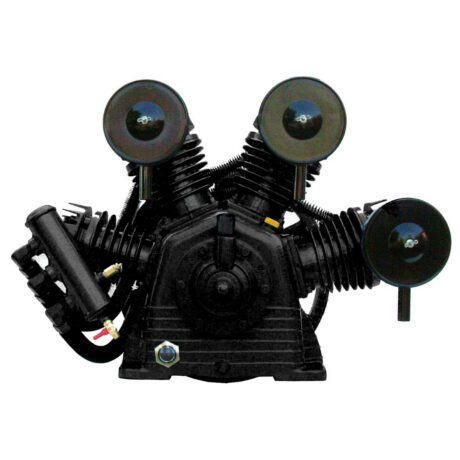

CT150
HP15
Displacement CFM52.2
FAD CFM @ 90 PSI43.8
FAD CFM @ 175 PSI42.8
Pump R.P.M.820
Piston dia (mm)95 / 80
CT150 — Full Specifications
HP15
Displacement CFM52.2
FAD CFM @ 90 PSI43.8
FAD CFM @ 175 PSI42.8
Pump R.P.M.820
Piston dia (mm)95 / 80
Stroke (mm)L 85 / H 85
No. of CylindersL 3 / H 1
Max PSI200
Working PSI175
Max. RPM900
Min. RPM650

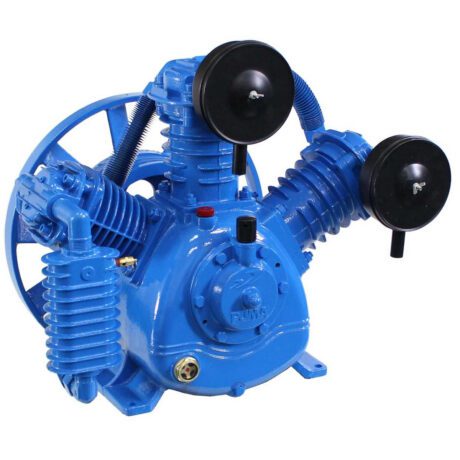

TK100
HP10
Displacement CFM32.9
FAD CFM @ 90 PSI25.7
FAD CFM @ 175 PSI24.7
Pump R.P.M.740
Piston dia (mm)100 / 70
TK100 — Full Specifications
HP10
Displacement CFM32.9
FAD CFM @ 90 PSI25.7
FAD CFM @ 175 PSI24.7
Pump R.P.M.740
Piston dia (mm)100 / 70
Stroke (mm)L 80 / H 80
No. of CylindersL 2 / H 1
Max PSI200
Working PSI175
Max. RPM1000
Min. RPM700

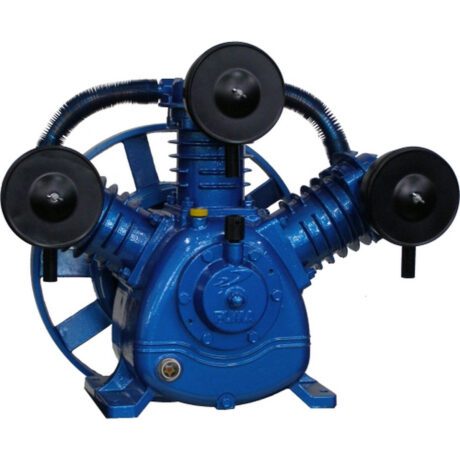

GUK100
HP10
Displacement CFM54.3
FAD CFM @ 40 PSI43.4
FAD CFM @ 90 PSI38
Pump R.P.M.816
Piston dia (mm)100
GUK100 — Full Specifications
HP10
Displacement CFM54.3
FAD CFM @ 40 PSI43.4
FAD CFM @ 90 PSI38
Pump R.P.M.816
Piston dia (mm)100
Stroke (mm)80
No. of Cylinders3
Max PSI150
Working PSI135
Max. RPM1100
Displacement @ Max RPM (cfm)73.19
Min. RPM700
Displacement @ Min RPM (cfm)46.58

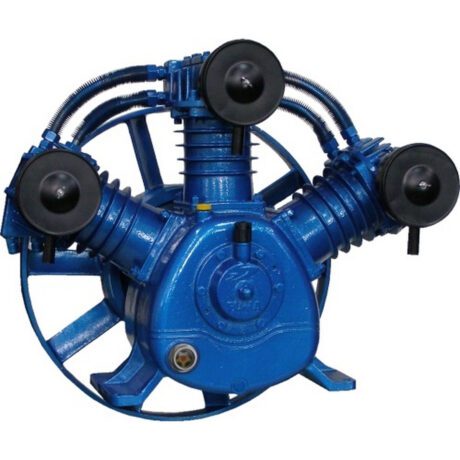

GUK200
HP20
Displacement CFM106
FAD CFM @ 40 PSI84
FAD CFM @ 90 PSI74
Pump R.P.M.870
Piston dia (mm)120
GUK200 — Full Specifications
HP20
Displacement CFM106
FAD CFM @ 40 PSI84
FAD CFM @ 90 PSI74
Pump R.P.M.870
Piston dia (mm)120
Stroke (mm)100
No. of Cylinders3
Max PSI150
Working PSI135
Max. RPM900
Displacement @ Max RPM (cfm)107.79
Min. RPM650
Displacement @ Min RPM (cfm)77.85
Remarksemi-auto type

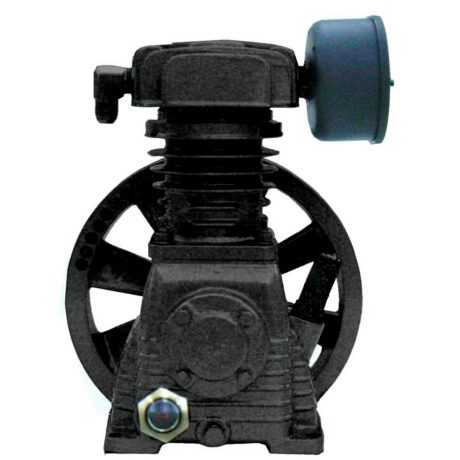

PK30
HP1
Displacement CFM5.3
FAD CFM @ 40 PSI4.6
FAD CFM @ 90 PSI3.7
Pump R.P.M.980
Piston dia (mm)65
PK30 — Full Specifications
HP1
Displacement CFM5.3
FAD CFM @ 40 PSI4.6
FAD CFM @ 90 PSI3.7
Pump R.P.M.980
Piston dia (mm)65
Stroke (mm)46
No. of Cylinders1
Max PSI150
Working PSI125
Max. RPM1400
Displacement @ Max RPM (cfm)7.54
Min. RPM800
Displacement @ Min RPM (cfm)4.31

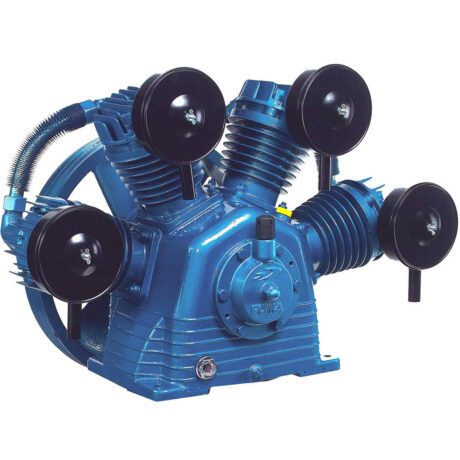

CK150
HP15
Displacement CFM69.4
FAD CFM @ 40 PSI63.2
FAD CFM @ 90 PSI56.9
Pump R.P.M.820
Piston dia (mm)95
CK150 — Full Specifications
HP15
Displacement CFM69.4
FAD CFM @ 40 PSI63.2
FAD CFM @ 90 PSI56.9
Pump R.P.M.820
Piston dia (mm)95
Stroke (mm)85
No. of Cylinders4
Max PSI150
Working PSI125
Max. RPM1000
Displacement @ Max RPM (cfm)85.07
Min. RPM700
Displacement @ Min RPM (cfm)59.55

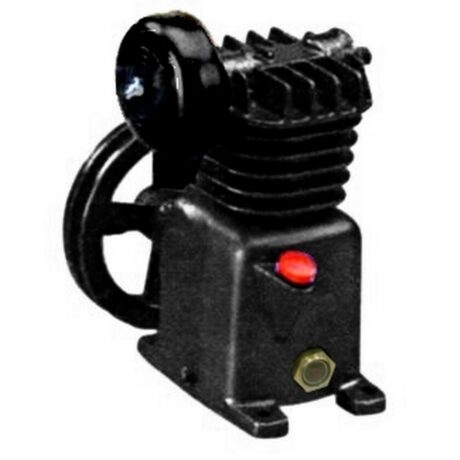

PK10
HP1/2
Displacement CFM2.2
FAD CFM @ 40 PSI1.5
FAD CFM @ 90 PSI1.1
Pump R.P.M.790
Piston dia (mm)51
PK10 — Full Specifications
HP1/2
Displacement CFM2.2
FAD CFM @ 40 PSI1.5
FAD CFM @ 90 PSI1.1
Pump R.P.M.790
Piston dia (mm)51
Stroke (mm)38
No. of Cylinders1
Max PSI150
Working PSI125
Max. RPM900
Displacement @ Max RPM (cfm)2.47
Min. RPM550
Displacement @ Min RPM (cfm)1.51

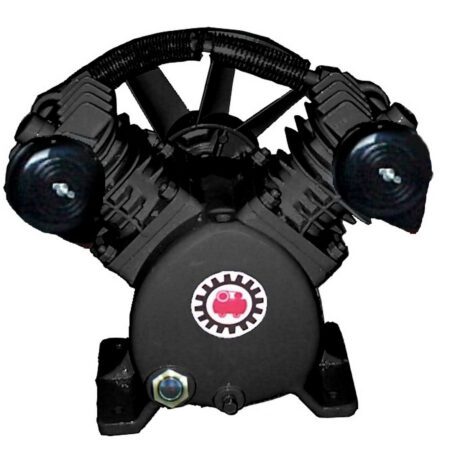

PP40
HP3/4
Displacement CFM3.7
FAD CFM @ 40 PSI2.5
FAD CFM @ 90 PSI1.9
Pump R.P.M.570
Piston dia (mm)51
PP40 — Full Specifications
HP3/4
Displacement CFM3.7
FAD CFM @ 40 PSI2.5
FAD CFM @ 90 PSI1.9
Pump R.P.M.570
Piston dia (mm)51
Stroke (mm)45
No. of Cylinders2
Max PSI150
Working PSI125
Max. RPM900
Displacement @ Max RPM (cfm)5.84
Min. RPM550
Displacement @ Min RPM (cfm)3.57

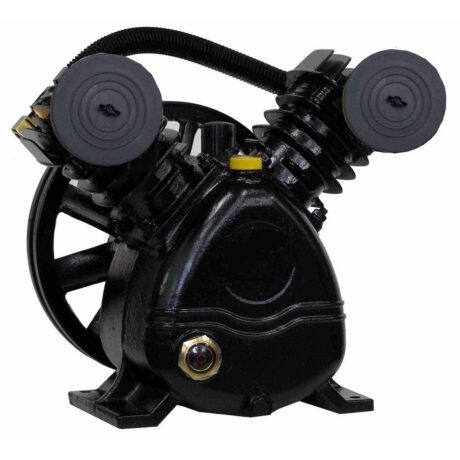

PK60
HP3
Displacement CFM14.2
FAD CFM @ 40 PSI11.6
FAD CFM @ 90 PSI10.3
Pump R.P.M.1310
Piston dia (mm)65
PK60 — Full Specifications
HP3
Displacement CFM14.2
FAD CFM @ 40 PSI11.6
FAD CFM @ 90 PSI10.3
Pump R.P.M.1310
Piston dia (mm)65
Stroke (mm)46
No. of Cylinders2
Max PSI150
Working PSI125
Max. RPM1400
Displacement @ Max RPM (cfm)15.09
Min. RPM800
Displacement @ Min RPM (cfm)8.62
