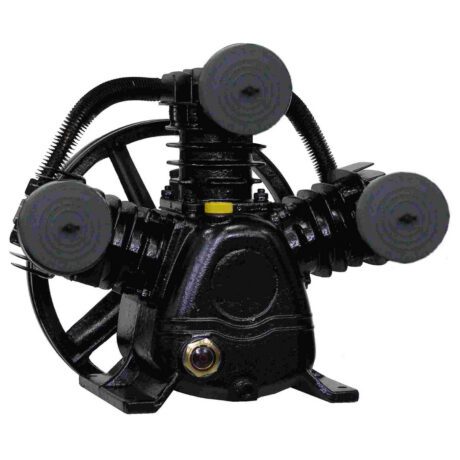

PK65
HP3
Displacement CFM15.2
FAD CFM @ 40 PSI12.5
FAD CFM @ 90 PSI10.6
Pump R.P.M.900
Piston dia (mm)65
PK65 — Full Specifications
HP3
Displacement CFM15.2
FAD CFM @ 40 PSI12.5
FAD CFM @ 90 PSI10.6
Pump R.P.M.900
Piston dia (mm)65
Stroke (mm)48
No. of Cylinders3
Max PSI150
Working PSI125
Max. RPM1400
Displacement @ Max RPM (cfm)23.61
Min. RPM800
Displacement @ Min RPM (cfm)13.49

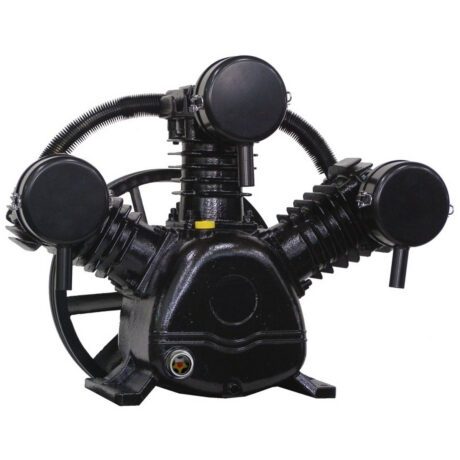

PUK75
HP5
Displacement CFM24.6
FAD CFM @ 40 PSI19
FAD CFM @ 90 PSI15.8
Pump R.P.M.770
Piston dia (mm)80
PUK75 — Full Specifications
HP5
Displacement CFM24.6
FAD CFM @ 40 PSI19
FAD CFM @ 90 PSI15.8
Pump R.P.M.770
Piston dia (mm)80
Stroke (mm)60
No. of Cylinders3
Max PSI150
Working PSI125
Max. RPM1100
Displacement @ Max RPM (cfm)35.13
Min. RPM700
Displacement @ Min RPM (cfm)22.36
Remarksemi-auto type
PK5020H
HP2
Motor RPM / Frame3450/ODP
Voltage / Phase115, 230*/Single
Full Load Amperage14, 7
Pump R.P.M.1150
Working PSI135
PK5020H — Full Specifications
HP2
Motor RPM / Frame3450/ODP
Voltage / Phase115, 230*/Single
Full Load Amperage14, 7
Pump R.P.M.1150
Working PSI135
CFM @ 40 PSI6.1
CFM @ 90 PSI5
Tank Capacity (GAL)20
Tank StyleHorizontal portable
ASME / Cert. CodeASME
RemarkETL
PK5040V
HP2
Motor RPM / Frame3450/ODP
Voltage / Phase115, 230*/Single
Full Load Amperage14, 7
Pump R.P.M.1150
Working PSI135
PK5040V — Full Specifications
HP2
Motor RPM / Frame3450/ODP
Voltage / Phase115, 230*/Single
Full Load Amperage14, 7
Pump R.P.M.1150
Working PSI135
CFM @ 40 PSI6.1
CFM @ 90 PSI5
Tank Capacity (GAL)40
Tank StyleVertical
ASME / Cert. CodeASME
PK6040V
HP3
Motor RPM / Frame3450/ODP
Voltage / Phase208-230/Single
Full Load Amperage16.6-15
Pump R.P.M.980
Working PSI135
PK6040V — Full Specifications
HP3
Motor RPM / Frame3450/ODP
Voltage / Phase208-230/Single
Full Load Amperage16.6-15
Pump R.P.M.980
Working PSI135
CFM @ 40 PSI12.6
CFM @ 90 PSI11.3
Tank Capacity (GAL)60
Tank StyleVertical
ASME / Cert. CodeASME/CRN
PK7080V
TK5080VM
HP5
Motor RPM / Frame1750/184
Voltage / Phase208-230/Single
Full Load Amperage23.5-21.5
Pump R.P.M.950
Working PSI175
TK5080VM — Full Specifications
HP5
Motor RPM / Frame1750/184
Voltage / Phase208-230/Single
Full Load Amperage23.5-21.5
Pump R.P.M.950
Working PSI175
FAD CFM @ 90 PSI18.3
FAD CFM @ 175 PSI17
Tank Capacity (GAL)80
Tank StyleVertical
ASME / Cert. CodeASME/CRN
TE7580VM
HP7.5
Motor RPM / Frame1750/215
Voltage / Phase208-230/Single
Full Load Amperage33-31.3
Pump R.P.M.1180
Working PSI175
TE7580VM — Full Specifications
HP7.5
Motor RPM / Frame1750/215
Voltage / Phase208-230/Single
Full Load Amperage33-31.3
Pump R.P.M.1180
Working PSI175
FAD CFM @ 90 PSI23
FAD CFM @ 175 PSI22
Tank Capacity (GAL)80
Tank StyleVertical
ASME / Cert. CodeASME/CRN

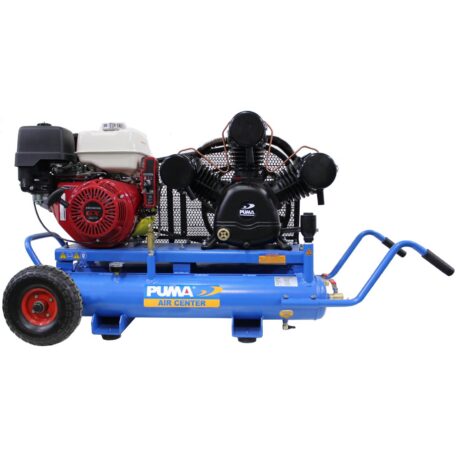

PUK13010G
Engine HP13
StarterYes*
Displacement CFM38
Tank Capacity (GAL)10
Tank StyleTwin portable
RemarkHonda GX390

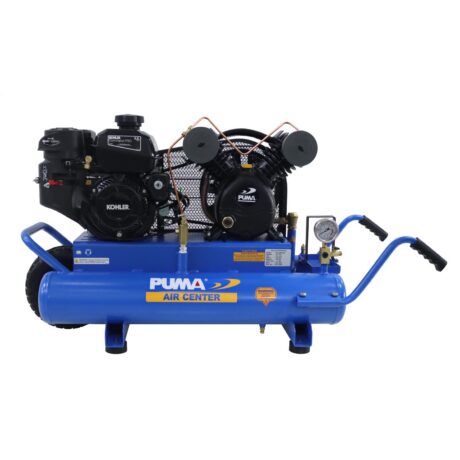

PUK6008KGE
Engine HP5.5
StarterYes*
Displacement CFM14.2
Tank Capacity (GAL)8
Tank StyleTwin portable
RemarkKohler CH255
PD1021
HP3/4
R.P.M.3000
Amp @ 12V DC46 / 50
Amp @ 24V DC22 / 30
Working PSI135
FAD Displacement (CFM)3.3
PD1021 — Full Specifications
HP3/4
R.P.M.3000
Amp @ 12V DC46 / 50
Amp @ 24V DC22 / 30
Working PSI135
FAD Displacement (CFM)3.3
FAD CFM @ 40 PSI2
FAD CFM @ 90 PSI1.36
Tank Capacity (GAL)2
Duty CycleContinuous
Noise Level (dB)78
WE1508V
HP1.5
R.P.M.1720
Voltage / Phase115/Single
Full Load Amperage12
CFM @ 40 PSI5.4
CFM @ 90 PSI4
WE1508V — Full Specifications
HP1.5
R.P.M.1720
Voltage / Phase115/Single
Full Load Amperage12
CFM @ 40 PSI5.4
CFM @ 90 PSI4
Working PSI125
Tank Capacity (GAL)8
Noise Level (dB)70
RemarkETL
