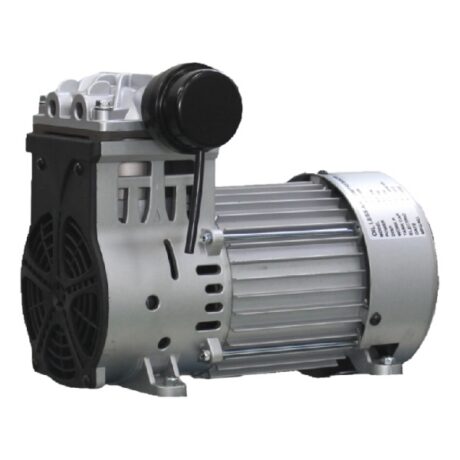

WS1
HP1
R.P.M.1720
Displacement CFM3.8
Delivered CFM2
No. of Cylinders1
Max PSI140
WS1 — Full Specifications
HP1
R.P.M.1720
Displacement CFM3.8
Delivered CFM2
No. of Cylinders1
Max PSI140
Noise dBA61
RemarksDirect Drive

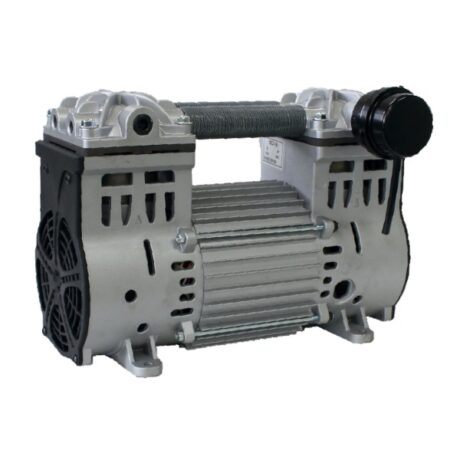

WD2
HP2
R.P.M.1720
Displacement CFM7.6
Delivered CFM4
No. of Cylinders2
Max PSI140
WD2 — Full Specifications
HP2
R.P.M.1720
Displacement CFM7.6
Delivered CFM4
No. of Cylinders2
Max PSI140
Noise dBA63
RemarksDirect Drive

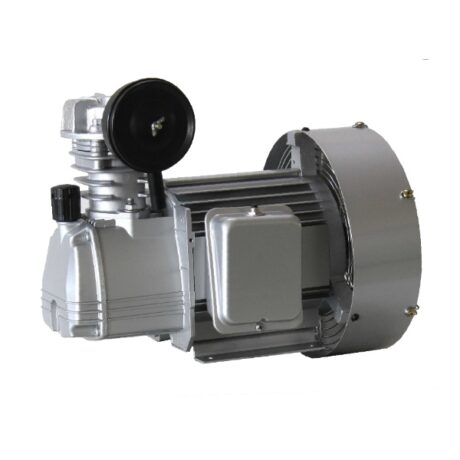

PF2
HP1.5
R.P.M.1720
Displacement CFM6.1
Delivered CFM3.5
No. of Cylinders1
Max PSI140
PF2 — Full Specifications
HP1.5
R.P.M.1720
Displacement CFM6.1
Delivered CFM3.5
No. of Cylinders1
Max PSI140
Noise dBA75
RemarksDirect Drive

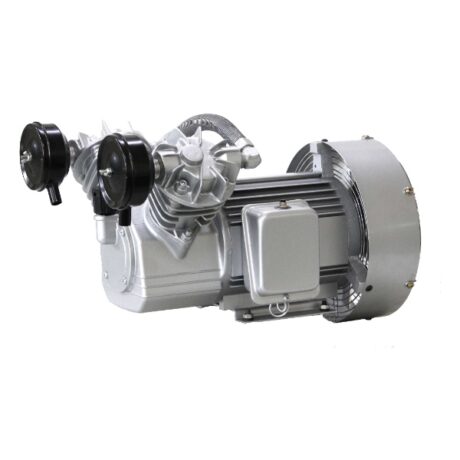

PF3
HP3
R.P.M.1720
Displacement CFM10.4
Delivered CFM5.8
No. of Cylinders2
Max PSI140
PF3 — Full Specifications
HP3
R.P.M.1720
Displacement CFM10.4
Delivered CFM5.8
No. of Cylinders2
Max PSI140
Noise dBA78
RemarksDirect Drive

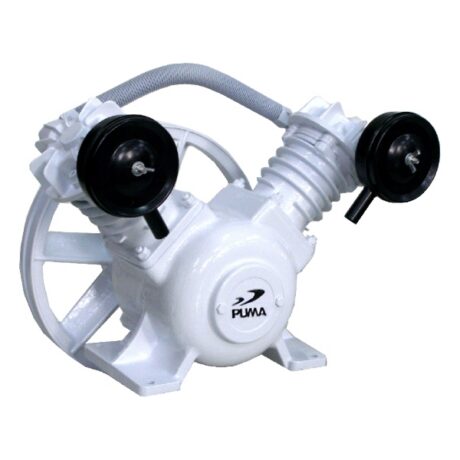

BF2
HP2
R.P.M.830
Displacement CFM9.7
Delivered CFM6.7
No. of Cylinders2
Max PSI140
BF2 — Full Specifications
HP2
R.P.M.830
Displacement CFM9.7
Delivered CFM6.7
No. of Cylinders2
Max PSI140
RemarksBelt Drive

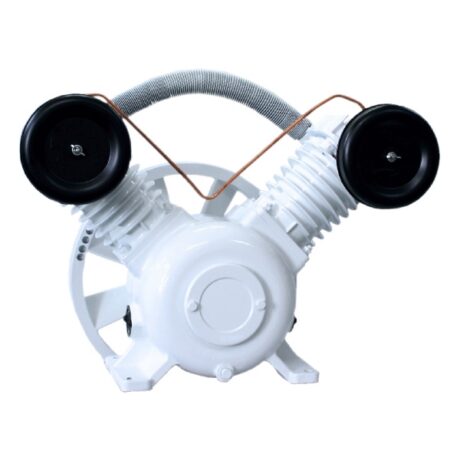

BUF5
HP5
R.P.M.810
Displacement CFM24.7
Delivered CFM18.5
No. of Cylinders2
Max PSI140
BUF5 — Full Specifications
HP5
R.P.M.810
Displacement CFM24.7
Delivered CFM18.5
No. of Cylinders2
Max PSI140
RemarksBelt Drive w/Head unloader

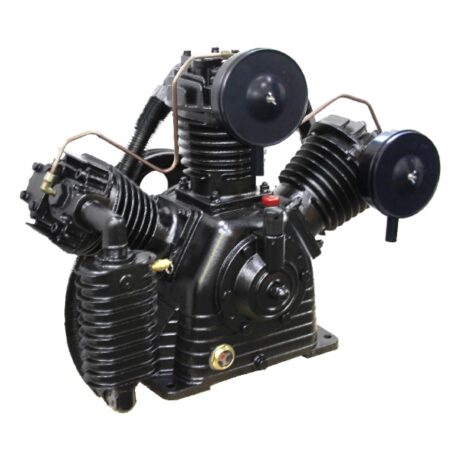

CUT100
HP10
R.P.M.950
Displacement CFM40
Delivered CFM34
No. of Cylinders3 (Lx2&Hx1)
Max PSI175
CUT100 — Full Specifications
HP10
R.P.M.950
Displacement CFM40
Delivered CFM34
No. of Cylinders3 (Lx2&Hx1)
Max PSI175
Remarksw/Head unloader

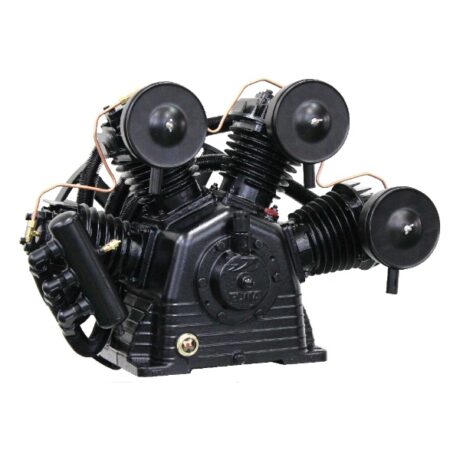

CUT150
HP15
R.P.M.870
Displacement CFM58
Delivered CFM48
No. of Cylinders4 (Lx3&Hx1)
Max PSI175
CUT150 — Full Specifications
HP15
R.P.M.870
Displacement CFM58
Delivered CFM48
No. of Cylinders4 (Lx3&Hx1)
Max PSI175
Remarksw/Head unloader

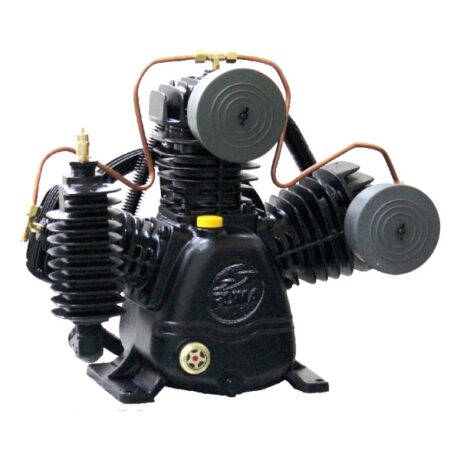

TUE50
HP3
R.P.M.850-1500
Displacement CFM10.1
Delivered CFM15
No. of CylindersL 2 / H 1
Max PSI200
TUE50 — Full Specifications
HP3
R.P.M.850-1500
Displacement CFM10.1
Delivered CFM15
No. of CylindersL 2 / H 1
Max PSI200
Remarksw/Head unloader
Pump R.P.M.900
Working PSI175
FAD CFM @ 90 PSI7.7
FAD CFM @ 175 PSI7.6
Piston dia (mm)65 / 51
Stroke (mm)L 48 / H 48
Max. RPM1400
Min. RPM800

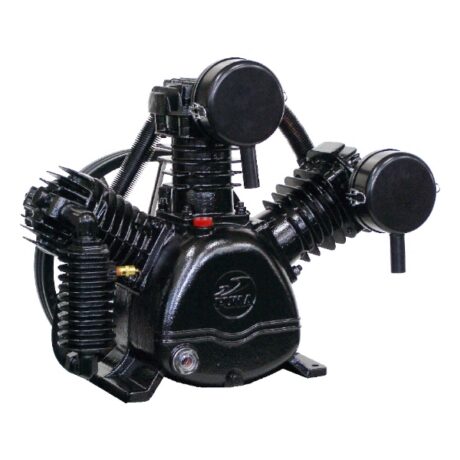

TK50
HP5
R.P.M.950-1300
Displacement CFM16.4
Delivered CFM23.6
No. of CylindersL 2 / H 1
Max PSI200
TK50 — Full Specifications
HP5
R.P.M.950-1300
Displacement CFM16.4
Delivered CFM23.6
No. of CylindersL 2 / H 1
Max PSI200
Pump R.P.M.770
Working PSI175
FAD CFM @ 90 PSI13
FAD CFM @ 175 PSI12.8
Piston dia (mm)80 / 65
Stroke (mm)L 60 / H 60
Max. RPM1100
Min. RPM700

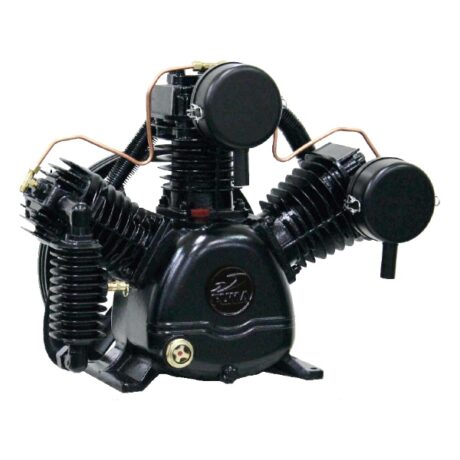

TUK50
HP5
R.P.M.950-1300
Displacement CFM16.4
Delivered CFM23.6
No. of CylindersL 2 / H 1
Max PSI200
TUK50 — Full Specifications
HP5
R.P.M.950-1300
Displacement CFM16.4
Delivered CFM23.6
No. of CylindersL 2 / H 1
Max PSI200
Remarksw/Head unloader
Pump R.P.M.770
Working PSI175
FAD CFM @ 90 PSI13
FAD CFM @ 175 PSI12.8
Remarksemi-auto type
Piston dia (mm)80 / 65
Stroke (mm)L 60 / H 60
Max. RPM1100
Min. RPM700

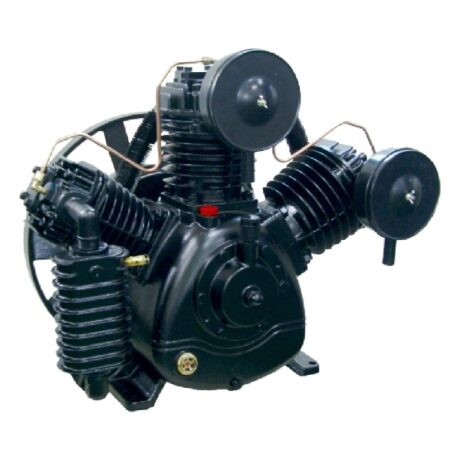

TUK100
HP10
R.P.M.870
Displacement CFM32.9
Delivered CFM34.2
No. of CylindersL 2 / H 1
Max PSI200
TUK100 — Full Specifications
HP10
R.P.M.870
Displacement CFM32.9
Delivered CFM34.2
No. of CylindersL 2 / H 1
Max PSI200
Remarksw/Head unloader
Pump R.P.M.740
Working PSI175
FAD CFM @ 90 PSI25.7
FAD CFM @ 175 PSI24.7
Remarksemi-auto type
Piston dia (mm)100 / 70
Stroke (mm)L 80 / H 80
Max. RPM1000
Min. RPM700
