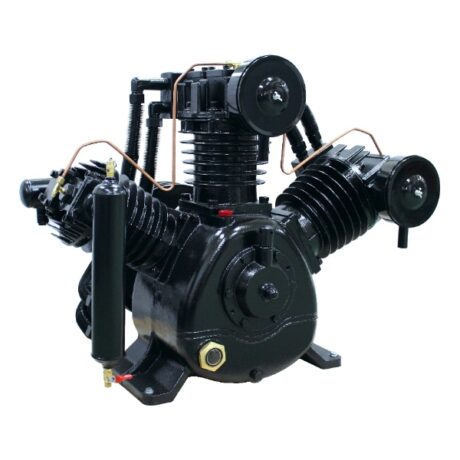

TUK200
HP20
R.P.M.935
Displacement CFM74.7
Delivered CFM62
No. of Cylinders3 (Lx2&Hx1)
Max PSI175
TUK200 — Full Specifications
HP20
R.P.M.935
Displacement CFM74.7
Delivered CFM62
No. of Cylinders3 (Lx2&Hx1)
Max PSI175
Remarksw/Head unloader
LA57
HP3/4'
R.P.M.3450
Displacement CFM3.8
Delivered CFM2.2
No. of Cylinders1
Max PSI140
LA57 — Full Specifications
HP3/4'
R.P.M.3450
Displacement CFM3.8
Delivered CFM2.2
No. of Cylinders1
Max PSI140
Noise dBA76
RemarksDirect Drive
LA75
HP3/4'
R.P.M.1720
Displacement CFM3
Delivered CFM1.6
No. of Cylinders1
Max PSI140
LA75 — Full Specifications
HP3/4'
R.P.M.1720
Displacement CFM3
Delivered CFM1.6
No. of Cylinders1
Max PSI140
Noise dBA75
RemarksDirect Drive

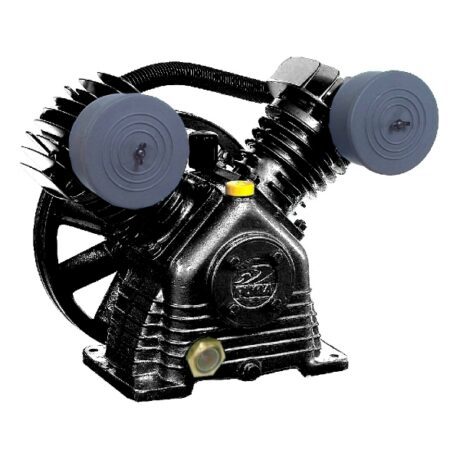

CK30
HP2/4'
R.P.M.775-1200
Displacement CFM17
Delivered CFM13.5
No. of Cylinders2
Max PSI140

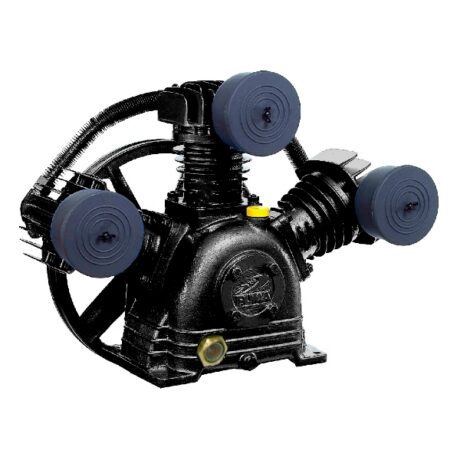

CK40
HP4.5-6.5
R.P.M.775-1130
Displacement CFM24
Delivered CFM19.5
No. of Cylinders3
Max PSI140

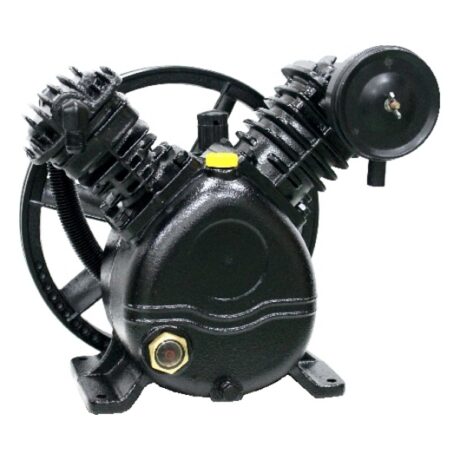

GT27
HP1.75-2.25
R.P.M.900-1300
Displacement CFM8.1
Delivered CFM6.9
No. of Cylinders2 (Lx1&Hx1)
Max PSI175

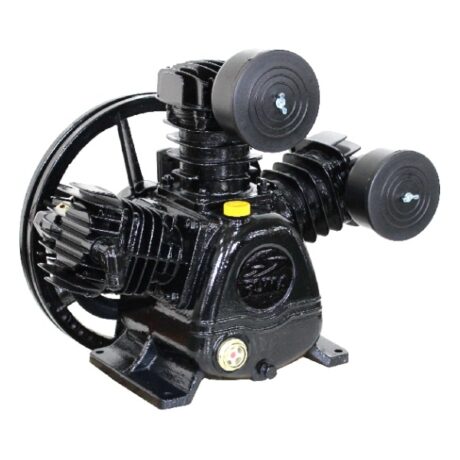

TE30
HP3.4-4.5
R.P.M.985-1200
Displacement CFM13.5
Delivered CFM11.5
No. of Cylinders3 (Lx2&Hx1)
Max PSI175

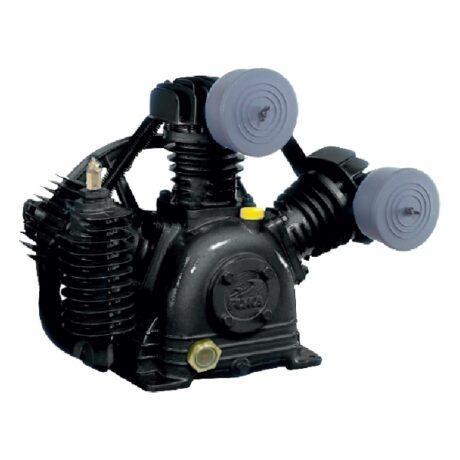

CT40
HP4
R.P.M.850-1260
Displacement CFM13.6
Delivered CFM15.5
No. of CylindersL 2 / H 1
Max PSI200
CT40 — Full Specifications
HP4
R.P.M.850-1260
Displacement CFM13.6
Delivered CFM15.5
No. of CylindersL 2 / H 1
Max PSI200
Pump R.P.M.960
Working PSI175
FAD CFM @ 90 PSI11.3
FAD CFM @ 175 PSI11.1
Piston dia (mm)65 / 51
Stroke (mm)L 60 / H 60
Max. RPM1400
Min. RPM800

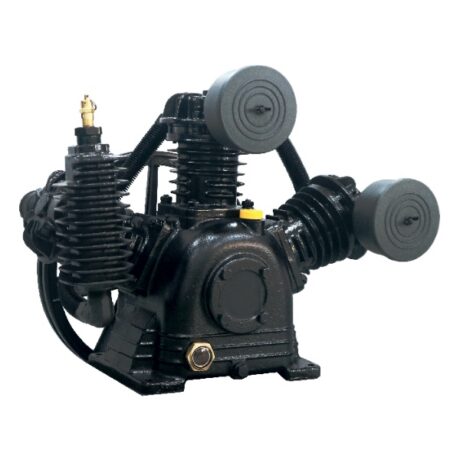

CT47
HP4.5-6.5
R.P.M.850-1500
Displacement CFM24.5
Delivered CFM20.8
No. of Cylinders3 (Lx2&Hx1)
Max PSI175

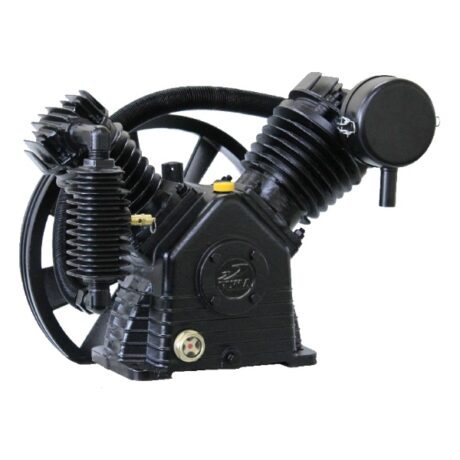

CT51
HP5-7.5
R.P.M.900-1300
Displacement CFM27.7
Delivered CFM23.5
No. of Cylinders2 (Lx1&Hx1)
Max PSI175

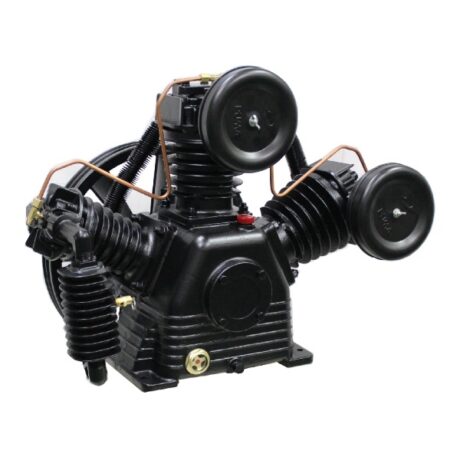

CUT75
HP7.5-10
R.P.M.860-1300
Displacement CFM39
Delivered CFM33
No. of Cylinders3 (Lx2&Hx1)
Max PSI175
CUT75 — Full Specifications
HP7.5-10
R.P.M.860-1300
Displacement CFM39
Delivered CFM33
No. of Cylinders3 (Lx2&Hx1)
Max PSI175
Remarksw/Head unloader

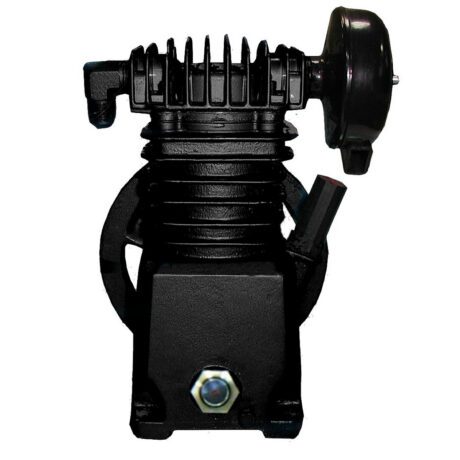

PK20
HP1
R.P.M.815-1040
Displacement CFM4.6
Delivered CFM3
No. of Cylinders1
Max PSI150
PK20 — Full Specifications
HP1
R.P.M.815-1040
Displacement CFM4.6
Delivered CFM3
No. of Cylinders1
Max PSI150
Pump R.P.M.1030
Working PSI125
FAD CFM @ 90 PSI3.3
FAD CFM @ 40 PSI3.4
Piston dia (mm)65
Stroke (mm)38
Max. RPM1100
Displacement @ Max RPM (cfm)4.9
Min. RPM800
Displacement @ Min RPM (cfm)3.56
