PK5040V
HP2
Motor RPM / Frame3450/ODP
Voltage / Phase115, 230*/Single
Full Load Amperage14, 7
Pump R.P.M.1150
Working PSI135
PK5040V — Full Specifications
HP2
Motor RPM / Frame3450/ODP
Voltage / Phase115, 230*/Single
Full Load Amperage14, 7
Pump R.P.M.1150
Working PSI135
CFM @ 40 PSI6.1
CFM @ 90 PSI5
Tank Capacity (GAL)40
Tank StyleVertical
ASME / Cert. CodeASME
PK6040V
HP3
Motor RPM / Frame3450/ODP
Voltage / Phase208-230/Single
Full Load Amperage16.6-15
Pump R.P.M.980
Working PSI135
PK6040V — Full Specifications
HP3
Motor RPM / Frame3450/ODP
Voltage / Phase208-230/Single
Full Load Amperage16.6-15
Pump R.P.M.980
Working PSI135
CFM @ 40 PSI12.6
CFM @ 90 PSI11.3
Tank Capacity (GAL)60
Tank StyleVertical
ASME / Cert. CodeASME/CRN
PK7080V

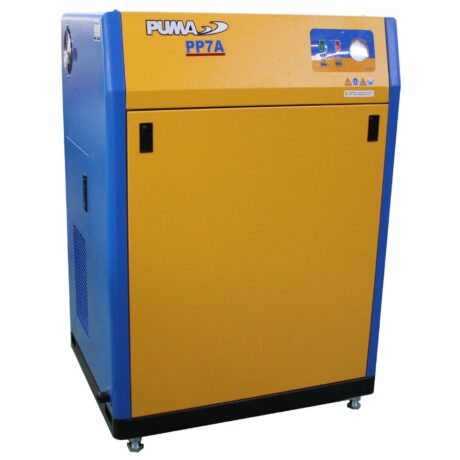

PP7A
HP7.5
Pump R.P.M.890
Working PSI135
Displacement CFM39.5
Tank Capacity (GAL)1.4
Noise Level (dB)68

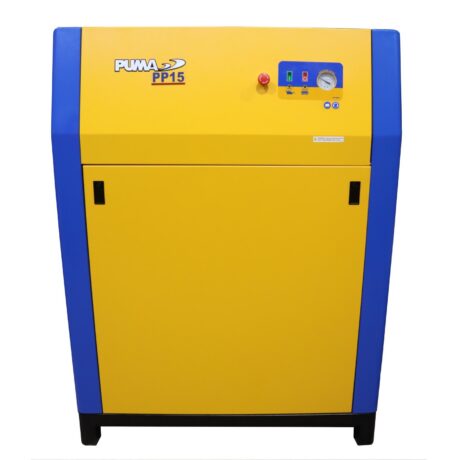

PP15
HP15
Pump R.P.M.820
Working PSI135
Displacement CFM77.6
Tank Capacity (GAL)1.4
Noise Level (dB)73

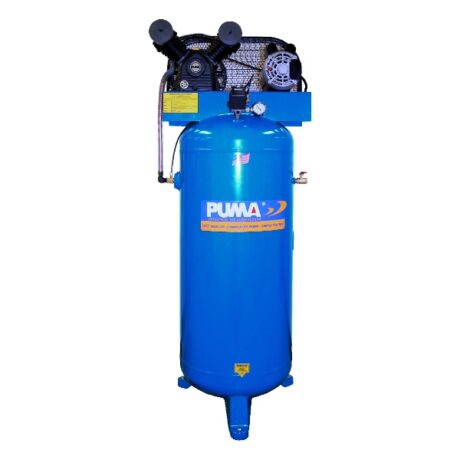

PK-6060V
HP3
Motor RPM / Frame3450/56
Voltage / Phase208-230/Single/16.6-15
Pump R.P.M.980
Working PSI135
Max PSI135
PK-6060V — Full Specifications
HP3
Motor RPM / Frame3450/56
Voltage / Phase208-230/Single/16.6-15
Pump R.P.M.980
Working PSI135
Max PSI135
CFM @ 40 PSI12.6
CFM @ 90 PSI11.3
Tank Capacity (GAL)60
Tank StyleVertical
ASME / Cert. CodeASME/CRN
FeaturesOil lubricated, single stage cast iron pumps.

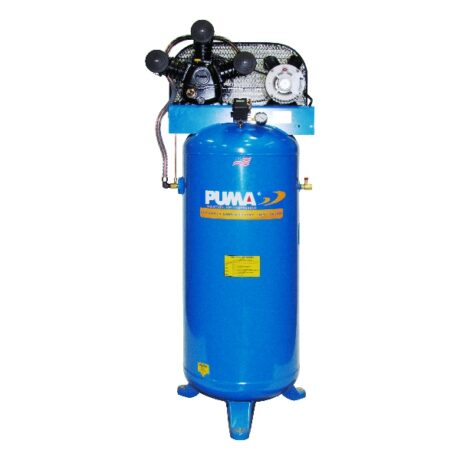

PK-6560V
HP5
Motor RPM / Frame3450/56
Voltage / Phase208-230/Single/21-19
Pump R.P.M.1180
Working PSI135
Max PSI135
PK-6560V — Full Specifications
HP5
Motor RPM / Frame3450/56
Voltage / Phase208-230/Single/21-19
Pump R.P.M.1180
Working PSI135
Max PSI135
CFM @ 40 PSI17
CFM @ 90 PSI15.5
Tank Capacity (GAL)60
Tank StyleVertical
ASME / Cert. CodeASME/CRN
Magnetic StarterOption
FeaturesSingle Phase induction motors with overload protection.

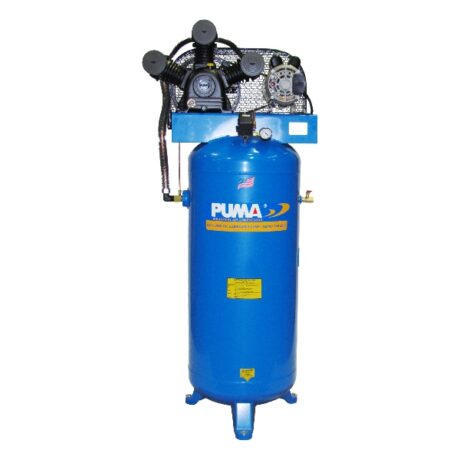

PK-7060V
HP6.5
Motor RPM / Frame3450/182
Voltage / Phase208-230/Single/24.5-23
Pump R.P.M.1130
Working PSI135
Max PSI135
PK-7060V — Full Specifications
HP6.5
Motor RPM / Frame3450/182
Voltage / Phase208-230/Single/24.5-23
Pump R.P.M.1130
Working PSI135
Max PSI135
CFM @ 40 PSI21
CFM @ 90 PSI19.5
Tank Capacity (GAL)60
Tank StyleVertical
ASME / Cert. CodeASME/CRN
RemarkExtend Water Drain
Magnetic StarterCombo Pressure Switch Starter
Features1/2” outlet ball valve and 1/4” drain ball valve on all units.
