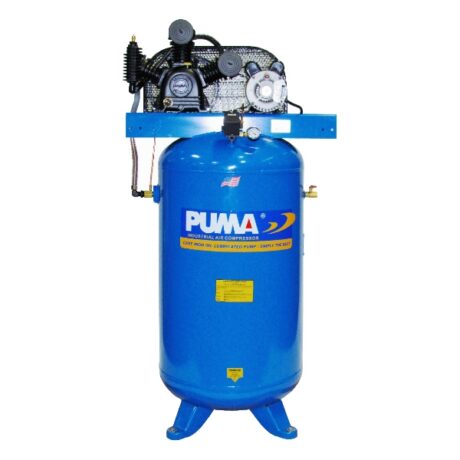

TE-6580V
HP6.5
Motor RPM / Frame3450 / 182
Voltage / Phase208-230 / Single / 24.5-23
Pump R.P.M.1268
Working PSI175
Max PSI175
TE-6580V — Full Specifications
HP6.5
Motor RPM / Frame3450 / 182
Voltage / Phase208-230 / Single / 24.5-23
Pump R.P.M.1268
Working PSI175
Max PSI175
FAD CFM @ 90 PSI17
FAD CFM @ 175 PSI16
Tank Capacity (GAL)80
Tank StyleVertical
ASME / Cert. CodeASME / CRN
Magnetic StarterCombo Pressure Switch Starter

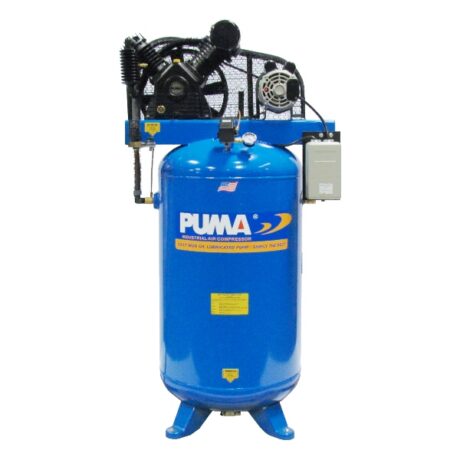

TN-6580VM
HP6.5
Motor RPM / Frame3450 / 182
Voltage / Phase208-230 / Single / 24.5-23
Pump R.P.M.985
Working PSI175
Max PSI175
TN-6580VM — Full Specifications
HP6.5
Motor RPM / Frame3450 / 182
Voltage / Phase208-230 / Single / 24.5-23
Pump R.P.M.985
Working PSI175
Max PSI175
FAD CFM @ 90 PSI17
FAD CFM @ 175 PSI16
Tank Capacity (GAL)80
Tank StyleVertical
ASME / Cert. CodeASME / CRN
Magnetic StarterYES

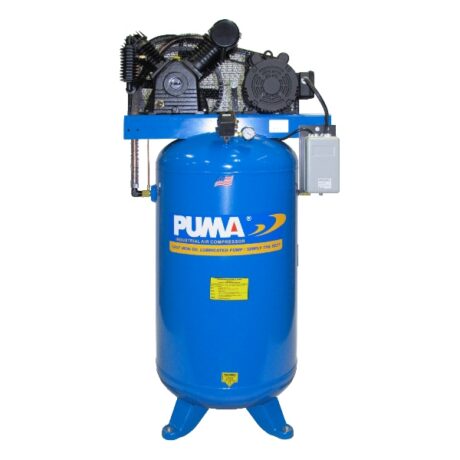

TN-5080VM
HP5
Motor RPM / Frame1740 / 184
Voltage / Phase208-230 / Single / 16.6-15
Pump R.P.M.950
Working PSI175
Max PSI175
TN-5080VM — Full Specifications
HP5
Motor RPM / Frame1740 / 184
Voltage / Phase208-230 / Single / 16.6-15
Pump R.P.M.950
Working PSI175
Max PSI175
FAD CFM @ 90 PSI18
FAD CFM @ 175 PSI16.5
Tank Capacity (GAL)80
Tank StyleVertical
ASME / Cert. CodeASME / CRN
Magnetic StarterYes
Outlet Ball Valve1/2"
Ext. Manual Drain1/4"
TN-5080VM3*
HP5
Motor RPM / Frame1750 / 184
Voltage / Phase208-230 or 460 / Three / 23-21
Pump R.P.M.950
Working PSI175
Max PSI175
TN-5080VM3* — Full Specifications
HP5
Motor RPM / Frame1750 / 184
Voltage / Phase208-230 or 460 / Three / 23-21
Pump R.P.M.950
Working PSI175
Max PSI175
FAD CFM @ 90 PSI18
FAD CFM @ 175 PSI16.5
Tank Capacity (GAL)80
Tank StyleVertical
ASME / Cert. CodeASME / CRN
Magnetic StarterYes
Outlet Ball Valve1/2"
Ext. Manual Drain1/4"

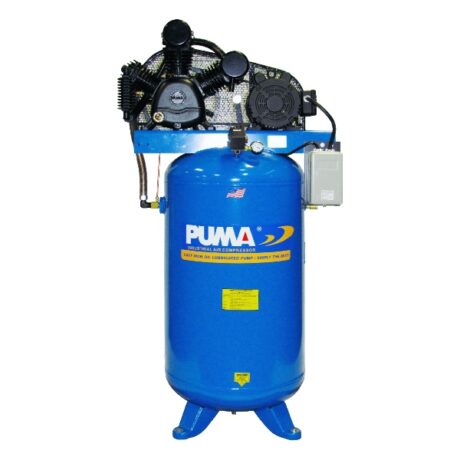

TUK-5080VM
HP5
Motor RPM / Frame1740 / 184
Voltage / Phase208-230 / Single / 23.5-21.5
Pump R.P.M.950
Working PSI175
Max PSI175
TUK-5080VM — Full Specifications
HP5
Motor RPM / Frame1740 / 184
Voltage / Phase208-230 / Single / 23.5-21.5
Pump R.P.M.950
Working PSI175
Max PSI175
FAD CFM @ 90 PSI18.3
FAD CFM @ 175 PSI17
Tank Capacity (GAL)80
Tank StyleVertical
ASME / Cert. CodeASME / CRN
Magnetic StarterYes
Outlet Ball Valve1/2"
Ext. Manual Drain1/4"
TUK-130HGE
Engine HP13
StarterYes*
Pump R.P.M.1230
FAD CFM @ 40 PSI24
FAD CFM @ 90 PSI23
Tank StyleBase Plate, Truck Mount**
TUK-130HGE — Full Specifications
Engine HP13
StarterYes*
Pump R.P.M.1230
FAD CFM @ 40 PSI24
FAD CFM @ 90 PSI23
Tank StyleBase Plate, Truck Mount**
Features100% Duty cycle.
PK-6060V
HP3
Motor RPM / Frame3450/56
Voltage / Phase208-230/Single/16.6-15
Pump R.P.M.980
Working PSI135
Max PSI135
PK-6060V — Full Specifications
HP3
Motor RPM / Frame3450/56
Voltage / Phase208-230/Single/16.6-15
Pump R.P.M.980
Working PSI135
Max PSI135
CFM @ 40 PSI12.6
CFM @ 90 PSI11.3
Tank Capacity (GAL)60
Tank StyleVertical
ASME / Cert. CodeASME/CRN
FeaturesOil lubricated, single stage cast iron pumps.
PK-6560V
HP5
Motor RPM / Frame3450/56
Voltage / Phase208-230/Single/21-19
Pump R.P.M.1180
Working PSI135
Max PSI135
PK-6560V — Full Specifications
HP5
Motor RPM / Frame3450/56
Voltage / Phase208-230/Single/21-19
Pump R.P.M.1180
Working PSI135
Max PSI135
CFM @ 40 PSI17
CFM @ 90 PSI15.5
Tank Capacity (GAL)60
Tank StyleVertical
ASME / Cert. CodeASME/CRN
Magnetic StarterOption
FeaturesSingle Phase induction motors with overload protection.
PK-7060V
HP6.5
Motor RPM / Frame3450/182
Voltage / Phase208-230/Single/24.5-23
Pump R.P.M.1130
Working PSI135
Max PSI135
PK-7060V — Full Specifications
HP6.5
Motor RPM / Frame3450/182
Voltage / Phase208-230/Single/24.5-23
Pump R.P.M.1130
Working PSI135
Max PSI135
CFM @ 40 PSI21
CFM @ 90 PSI19.5
Tank Capacity (GAL)60
Tank StyleVertical
ASME / Cert. CodeASME/CRN
RemarkExtend Water Drain
Magnetic StarterCombo Pressure Switch Starter
Features1/2” outlet ball valve and 1/4” drain ball valve on all units.

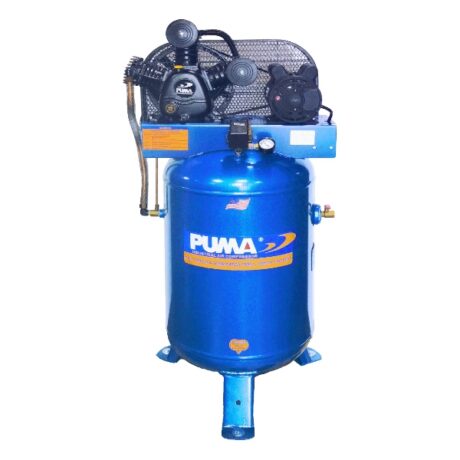

TE-3040V
HP3
Motor RPM / Frame3450 / 56
Voltage / Phase208-230 / Single / 16.6-15
Pump R.P.M.985
Working PSI175
Max PSI175
TE-3040V — Full Specifications
HP3
Motor RPM / Frame3450 / 56
Voltage / Phase208-230 / Single / 16.6-15
Pump R.P.M.985
Working PSI175
Max PSI175
FAD CFM @ 90 PSI10.2
FAD CFM @ 175 PSI9.3
Tank Capacity (GAL)40
Tank StyleVertical
ASME / Cert. CodeASME
Outlet Ball ValveOil lubricated, two stage cast iron pumps. Two cylinder V type or Three cylinder radial type pumps.

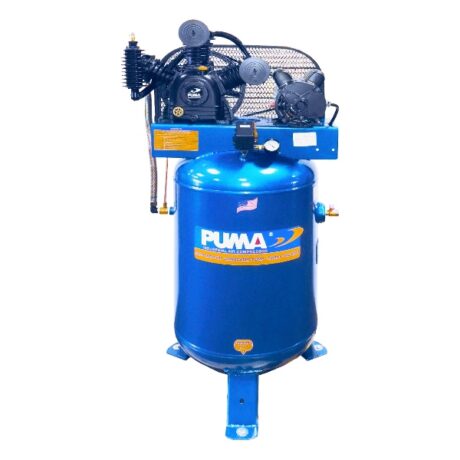

TE-5040V
HP5
Motor RPM / Frame3450 / 56
Voltage / Phase208-230 / Single / 23-21
Pump R.P.M.985
Working PSI175
Max PSI175
TE-5040V — Full Specifications
HP5
Motor RPM / Frame3450 / 56
Voltage / Phase208-230 / Single / 23-21
Pump R.P.M.985
Working PSI175
Max PSI175
FAD CFM @ 90 PSI14
FAD CFM @ 175 PSI12.8
Tank Capacity (GAL)40
Tank StyleVertical
ASME / Cert. CodeASME
Magnetic StarterOption
Outlet Ball Valve1/2” outlet ball valve and 1/4” extended drain ball valve on all units.
PUK6530HGE
Engine HP6.5
StarterYes*
Pump R.P.M.1365
FAD CFM @ 40 PSI16
FAD CFM @ 90 PSI14.5
Tank Capacity (GAL)30
PUK6530HGE — Full Specifications
Engine HP6.5
StarterYes*
Pump R.P.M.1365
FAD CFM @ 40 PSI16
FAD CFM @ 90 PSI14.5
Tank Capacity (GAL)30
Tank StyleHorizontal
ASME / Cert. CodeASME
Accessories1/2"Ball valve
FeaturesEngines used on all models are 50-states compliant.
