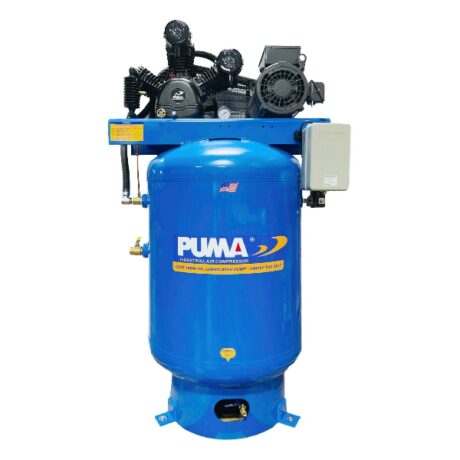

TUE-75120VM3*
HP7.5
Motor RPM / Frame1740 / 215
Voltage / Phase208-230 or 460 / Three / 19.8-17.9 or 8.97
Pump R.P.M.1180
Working PSI175
Max PSI175
TUE-75120VM3* — Full Specifications
HP7.5
Motor RPM / Frame1740 / 215
Voltage / Phase208-230 or 460 / Three / 19.8-17.9 or 8.97
Pump R.P.M.1180
Working PSI175
Max PSI175
FAD CFM @ 90 PSI23
FAD CFM @ 175 PSI22
Tank Capacity (GAL)120
Tank StyleVertical
ASME / Cert. CodeASME / CRN
Magnetic StarterYes
Outlet Ball Valve1"
Ext. Manual Drain1/4"
TUE-75120M
HP7.5
Motor RPM / Frame1740 / 215
Voltage / Phase208-230 / Single / 33.3-31.3
Pump R.P.M.1180
Working PSI175
Max PSI175
TUE-75120M — Full Specifications
HP7.5
Motor RPM / Frame1740 / 215
Voltage / Phase208-230 / Single / 33.3-31.3
Pump R.P.M.1180
Working PSI175
Max PSI175
FAD CFM @ 90 PSI23
FAD CFM @ 175 PSI22
Tank Capacity (GAL)120
Tank StyleHorizontal
ASME / Cert. CodeASME / CRN
Magnetic StarterYes
Outlet Ball Valve1"
Ext. Manual Drain1/4"

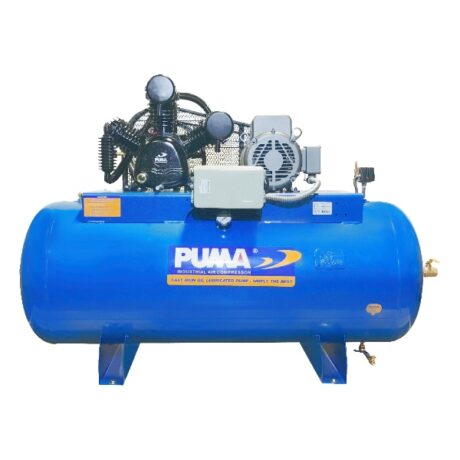

TUE-75120M3*
HP7.5
Motor RPM / Frame1740 / 215
Voltage / Phase208-230 or 460 / Three / 19.8-17.9 or 8.97
Pump R.P.M.1180
Working PSI175
Max PSI175
TUE-75120M3* — Full Specifications
HP7.5
Motor RPM / Frame1740 / 215
Voltage / Phase208-230 or 460 / Three / 19.8-17.9 or 8.97
Pump R.P.M.1180
Working PSI175
Max PSI175
FAD CFM @ 90 PSI23
FAD CFM @ 175 PSI22
Tank Capacity (GAL)120
Tank StyleHorizontal
ASME / Cert. CodeASME / CRN
Magnetic StarterYes
Outlet Ball Valve1"
Ext. Manual Drain1/4"

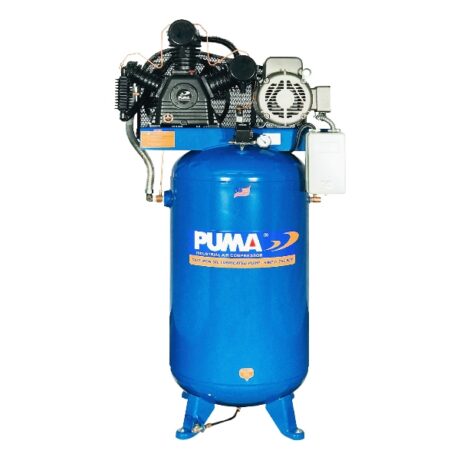

TUK-7580VM
HP7.5
Motor RPM / Frame1740 / 215
Voltage / Phase208- 230 / Single / 40
Pump R.P.M.890
Working PSI175
Max PSI175
TUK-7580VM — Full Specifications
HP7.5
Motor RPM / Frame1740 / 215
Voltage / Phase208- 230 / Single / 40
Pump R.P.M.890
Working PSI175
Max PSI175
FAD CFM @ 90 PSI24
FAD CFM @ 175 PSI23
Tank Capacity (GAL)80
Tank StyleVertical
ASME / Cert. CodeASME / CRN
Magnetic StarterYes
Outlet Ball Valve1/2"
Ext. Manual Drain1/4"

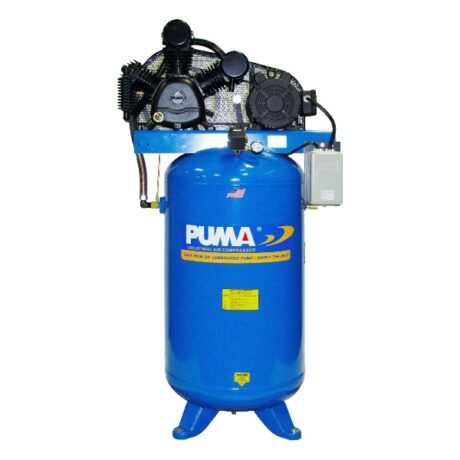

TUK-5080VM3*
HP5
Motor RPM / Frame1750 / 184
Voltage / Phase208-230 or 460 / Three / 14-13.2 or 6.6
Pump R.P.M.950
Working PSI175
Max PSI175
TUK-5080VM3* — Full Specifications
HP5
Motor RPM / Frame1750 / 184
Voltage / Phase208-230 or 460 / Three / 14-13.2 or 6.6
Pump R.P.M.950
Working PSI175
Max PSI175
FAD CFM @ 90 PSI18.3
FAD CFM @ 175 PSI17
Tank Capacity (GAL)80
Tank StyleVertical
ASME / Cert. CodeASME / CRN
Magnetic StarterYes
Outlet Ball Valve1/2"
Ext. Manual Drain1/4"
TUK-50120VM
HP5
Motor RPM / Frame1740 / 184
Voltage / Phase208-230 / Single / 23.5-21.5
Pump R.P.M.950
Working PSI175
Max PSI175
TUK-50120VM — Full Specifications
HP5
Motor RPM / Frame1740 / 184
Voltage / Phase208-230 / Single / 23.5-21.5
Pump R.P.M.950
Working PSI175
Max PSI175
FAD CFM @ 90 PSI18.3
FAD CFM @ 175 PSI17
Tank Capacity (GAL)120
Tank StyleVertical
ASME / Cert. CodeASME / CRN
Magnetic StarterYes
Outlet Ball Valve1"
Ext. Manual Drain1/4"

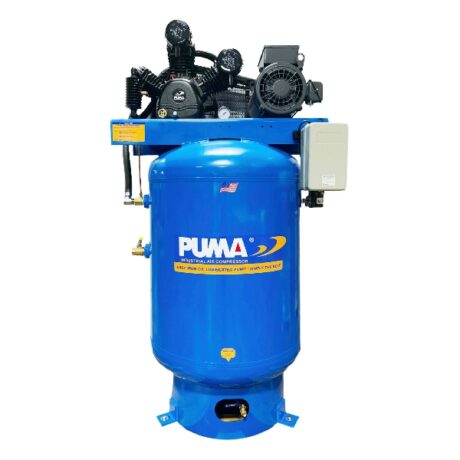

TUK-50120VM3*
HP5
Motor RPM / Frame1750 / 184
Voltage / Phase208-230 or 460 / Three / 14-13.2 or 6.6
Pump R.P.M.950
Working PSI175
Max PSI175
TUK-50120VM3* — Full Specifications
HP5
Motor RPM / Frame1750 / 184
Voltage / Phase208-230 or 460 / Three / 14-13.2 or 6.6
Pump R.P.M.950
Working PSI175
Max PSI175
FAD CFM @ 90 PSI18.3
FAD CFM @ 175 PSI17
Tank Capacity (GAL)120
Tank StyleVertical
ASME / Cert. CodeASME / CRN
Magnetic StarterYes
Outlet Ball Valve1"
Ext. Manual Drain1/4"
TUK-50120M
HP5
Motor RPM / Frame1740 / 184
Voltage / Phase208-230 / Single / 23.5-21.5
Pump R.P.M.950
Working PSI175
Max PSI175
TUK-50120M — Full Specifications
HP5
Motor RPM / Frame1740 / 184
Voltage / Phase208-230 / Single / 23.5-21.5
Pump R.P.M.950
Working PSI175
Max PSI175
FAD CFM @ 90 PSI18.3
FAD CFM @ 175 PSI17
Tank Capacity (GAL)120
Tank StyleHorizontal
ASME / Cert. CodeASME / CRN
Magnetic StarterYes
Outlet Ball Valve1"
Ext. Manual Drain1/4"
TUK-50120M3*
HP5
Motor RPM / Frame1750 / 184
Voltage / Phase208-230 or 460 / Three / 14-13.2 or 6.6
Pump R.P.M.950
Working PSI175
Max PSI175
TUK-50120M3* — Full Specifications
HP5
Motor RPM / Frame1750 / 184
Voltage / Phase208-230 or 460 / Three / 14-13.2 or 6.6
Pump R.P.M.950
Working PSI175
Max PSI175
FAD CFM @ 90 PSI18.3
FAD CFM @ 175 PSI17
Tank Capacity (GAL)120
Tank StyleHorizontal
ASME / Cert. CodeASME / CRN
Magnetic StarterYes
Outlet Ball Valve1"
Ext. Manual Drain1/4"

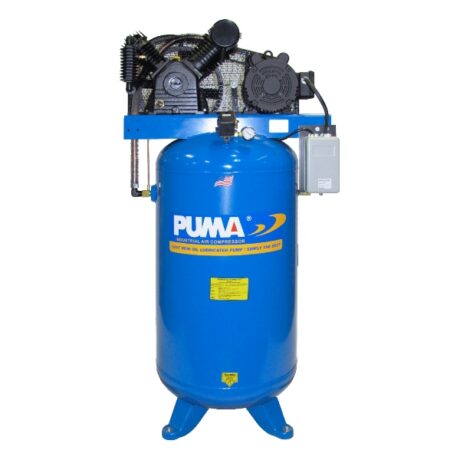

TN-7580VM
HP7.5
Motor RPM / Frame3450 / 184
Voltage / Phase208-230 / Single / 33
Pump R.P.M.1161
Working PSI175
Max PSI175
TN-7580VM — Full Specifications
HP7.5
Motor RPM / Frame3450 / 184
Voltage / Phase208-230 / Single / 33
Pump R.P.M.1161
Working PSI175
Max PSI175
FAD CFM @ 90 PSI22
FAD CFM @ 175 PSI21
Tank Capacity (GAL)80
Tank StyleVertical
ASME / Cert. CodeASME / CRN
Magnetic StarterYes
Outlet Ball Valve1/2"
Ext. Manual Drain1/4"

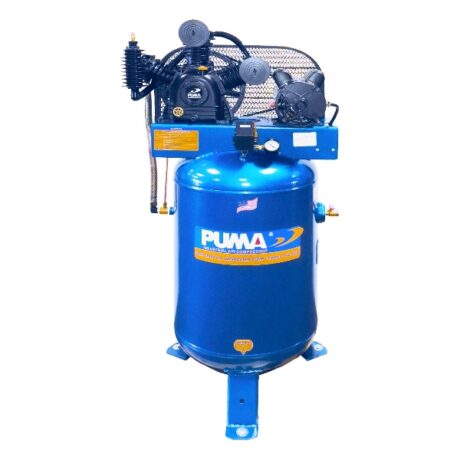

TE-6540V
HP6.5
Motor RPM / Frame3450 / 182
Voltage / Phase208-230 / Single / 24.5-23
Pump R.P.M.1268
Working PSI175
Max PSI175
TE-6540V — Full Specifications
HP6.5
Motor RPM / Frame3450 / 182
Voltage / Phase208-230 / Single / 24.5-23
Pump R.P.M.1268
Working PSI175
Max PSI175
FAD CFM @ 90 PSI17
FAD CFM @ 175 PSI16
Tank Capacity (GAL)40
Tank StyleVertical
ASME / Cert. CodeASME
Magnetic StarterCombo Pressure Switch Starter
Outlet Ball ValveAll tanks are rated at 200 PSI with either ASME or CRN certified.

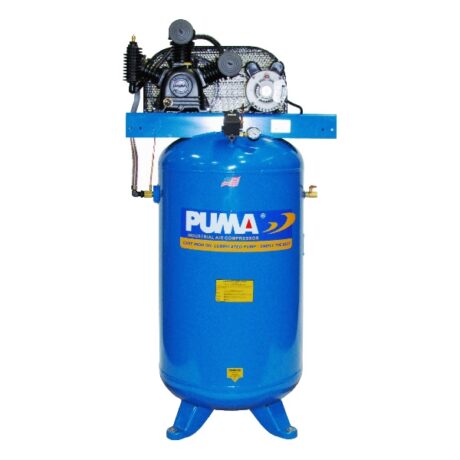

TE-5080V
HP5
Motor RPM / Frame3450 / 56
Voltage / Phase208-230 / Single / 21-19
Pump R.P.M.985
Working PSI175
Max PSI175
TE-5080V — Full Specifications
HP5
Motor RPM / Frame3450 / 56
Voltage / Phase208-230 / Single / 21-19
Pump R.P.M.985
Working PSI175
Max PSI175
FAD CFM @ 90 PSI14
FAD CFM @ 175 PSI12.8
Tank Capacity (GAL)80
Tank StyleVertical
ASME / Cert. CodeASME / CRN
Magnetic StarterOption
Outlet Ball ValveProfessional grade units are available in accessories such as automatic water drain, vibration damper, and high flow heavy duty regulator filter.
